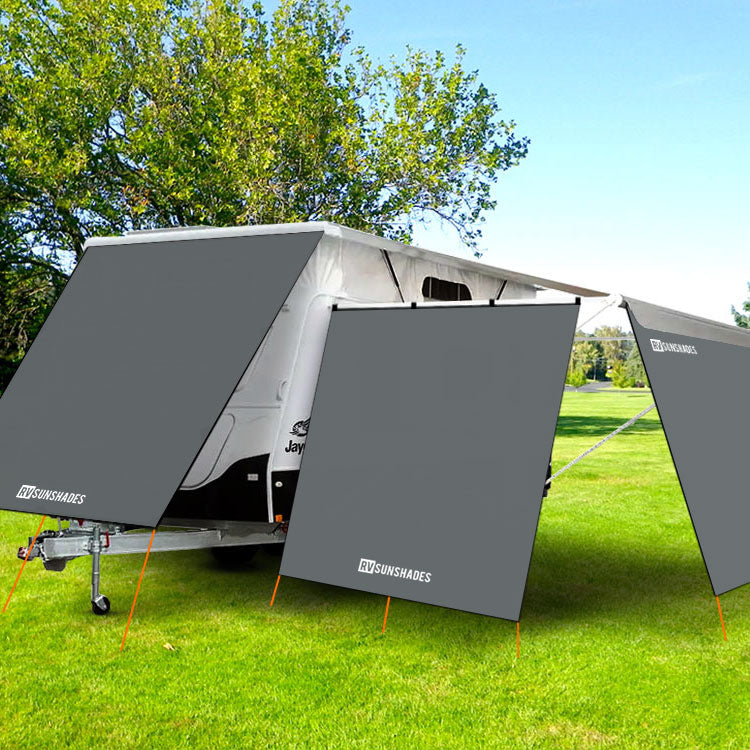

Create a brighter, more weather-protected caravan awning area with this Premium V2 waterproof end wall. The flat-top rectangle panel is sized 2150 mm wide × 2000 mm high and is configured for the either awning end.
Confirm all dimensions and orientation before ordering. End-wall fit depends on the available mounting height, wall width and attachment arrangement—not caravan length alone.
Will this waterproof end wall fit?
Measure the required inner height, outer height and width at the intended awning end. This listing is 2150 mm wide × 2000 mm high.
Click any image to open the full-size file.
Product specifications
| Version | Premium V2—current range |
|---|---|
| Shape | Flat-top rectangle |
| Inner height | 2000 mm |
| Outer height | 2000 mm |
| Width | 2150 mm |
| Orientation | Reversible |

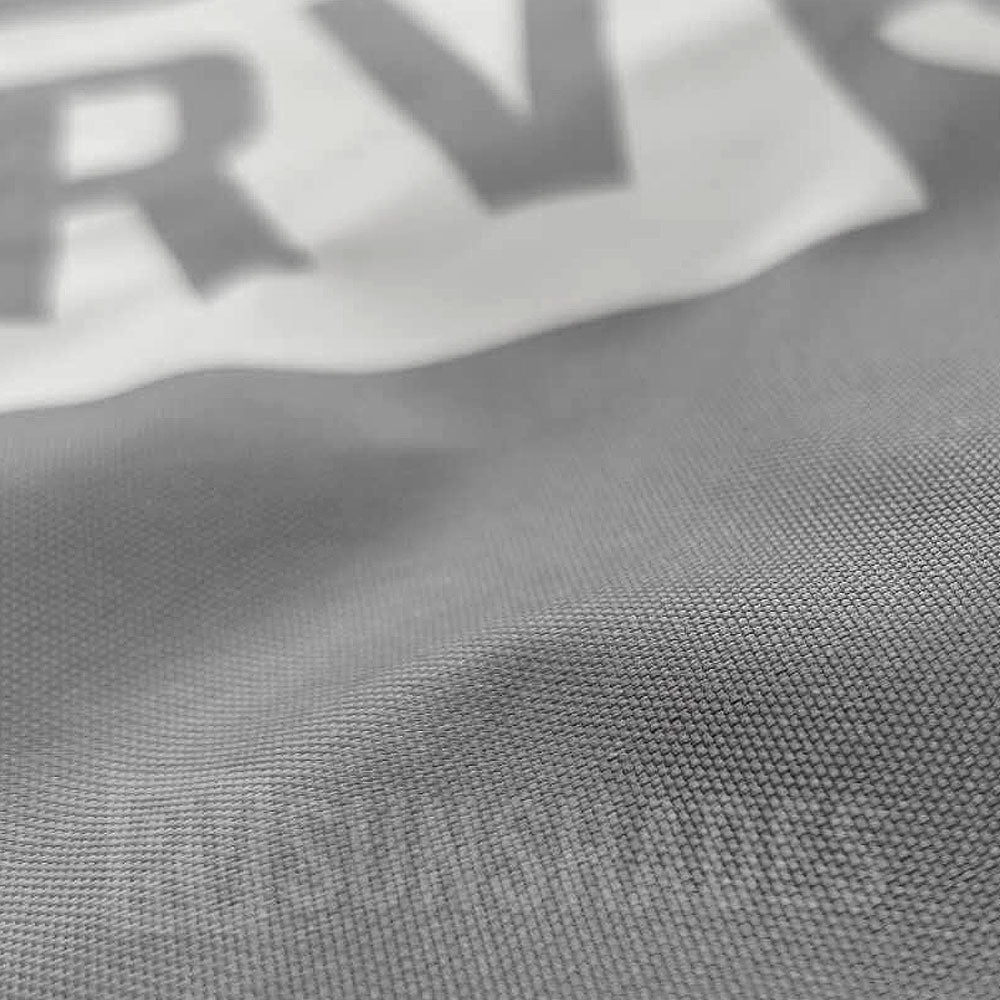

| Material | 300D Oxford polyester, 150 gsm |
| Waterproof rating | PU 3000 mm |
| Colour | Light grey |

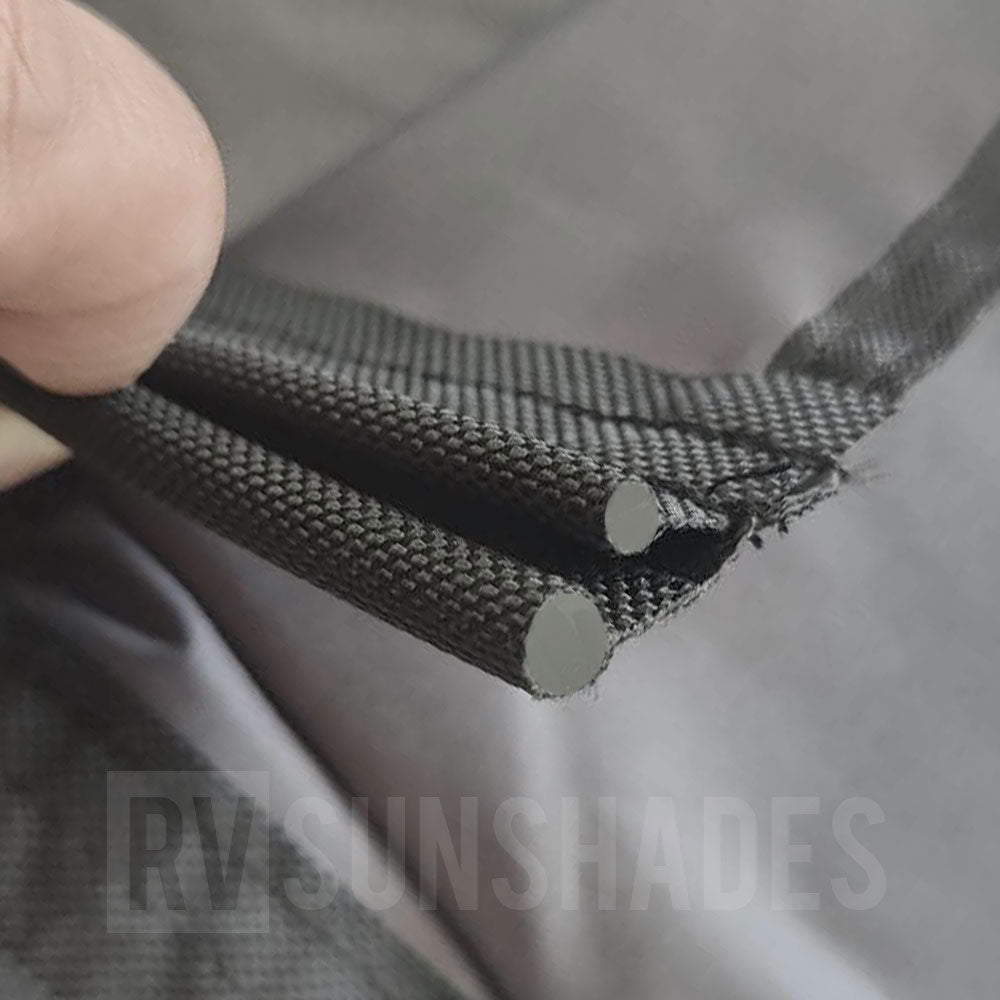

| Attachment | 6 mm heavy-duty keder plus Velcro straps |
Premium V2 compared with Standard V1
Premium V2 is the stronger current replacement range. Standard V1 is being phased out and will not be restocked after remaining stock is sold.
| Feature | Standard V1 | Premium V2 |
|---|---|---|
| Range position | Earlier version; remaining stock only | Current replacement range |
| Fabric | 150D Oxford, 75 gsm* | 300D Oxford, 150 gsm |
| Waterproof rating | PU 2000 mm* | PU 3000 mm |

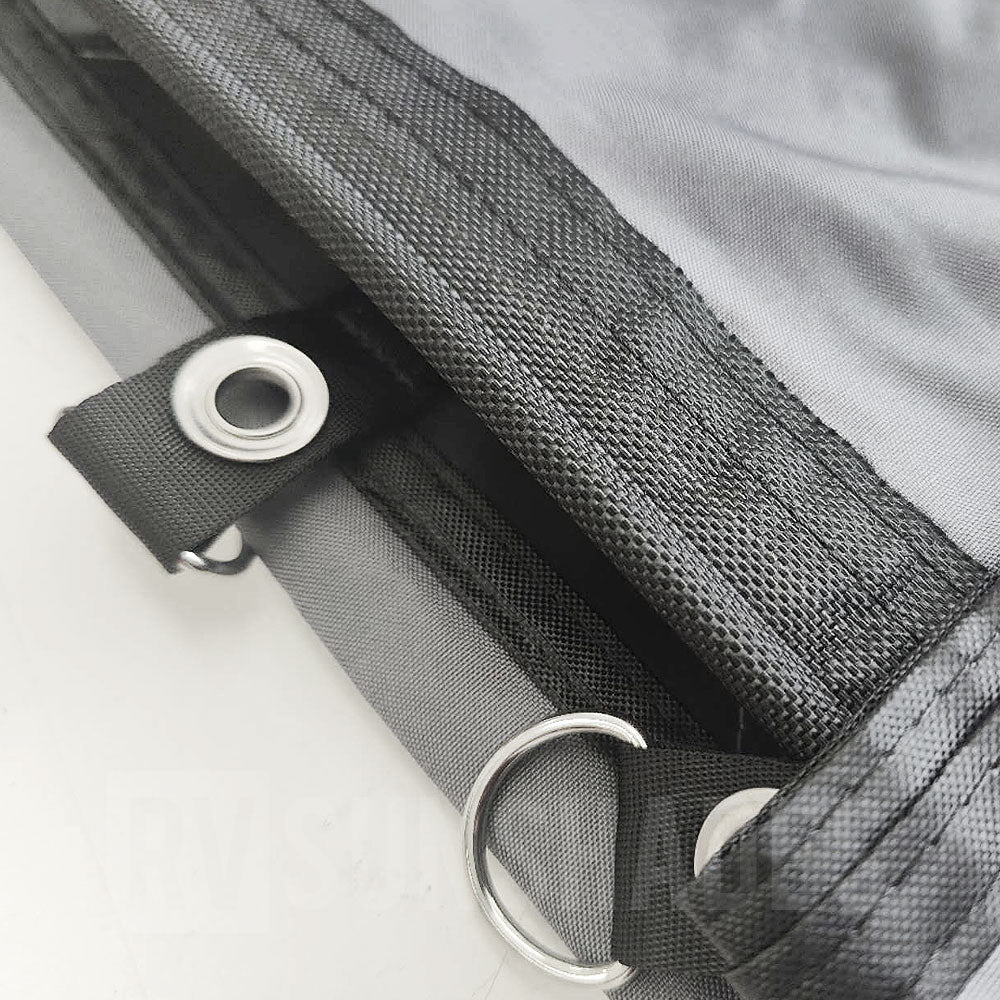

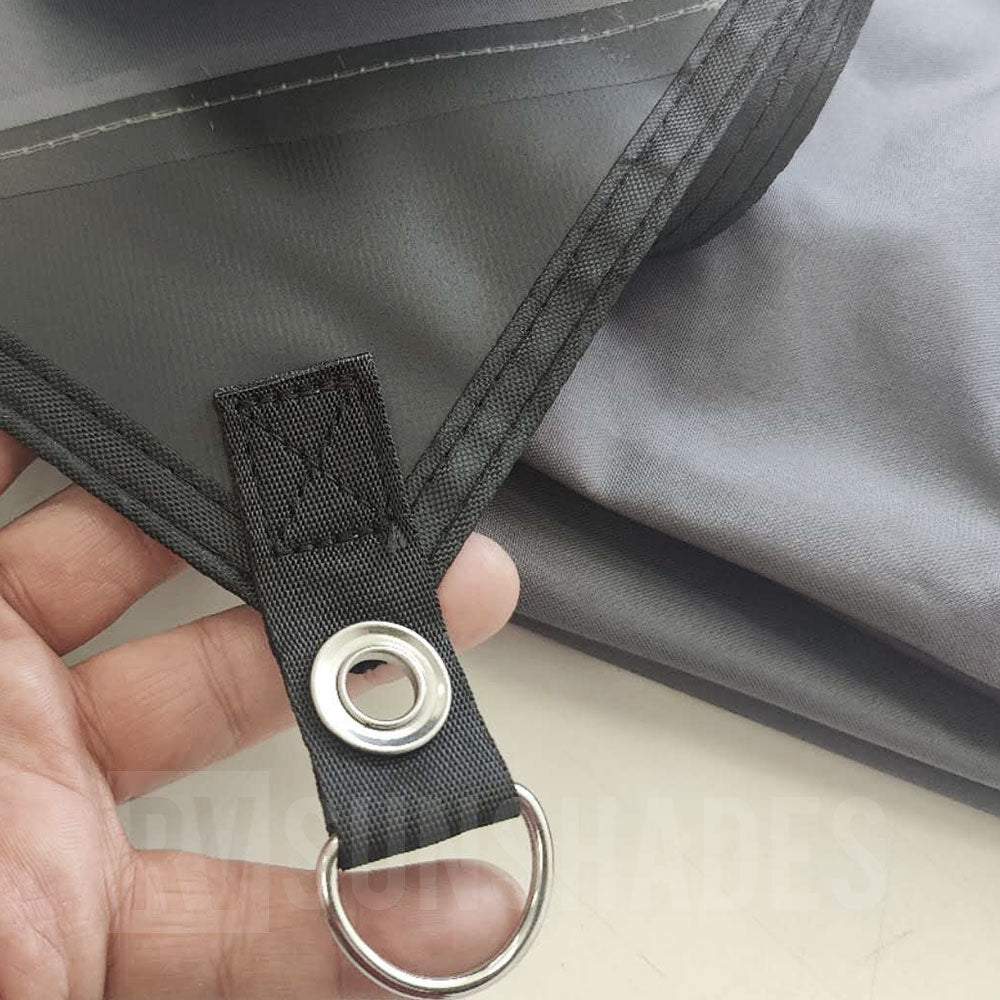

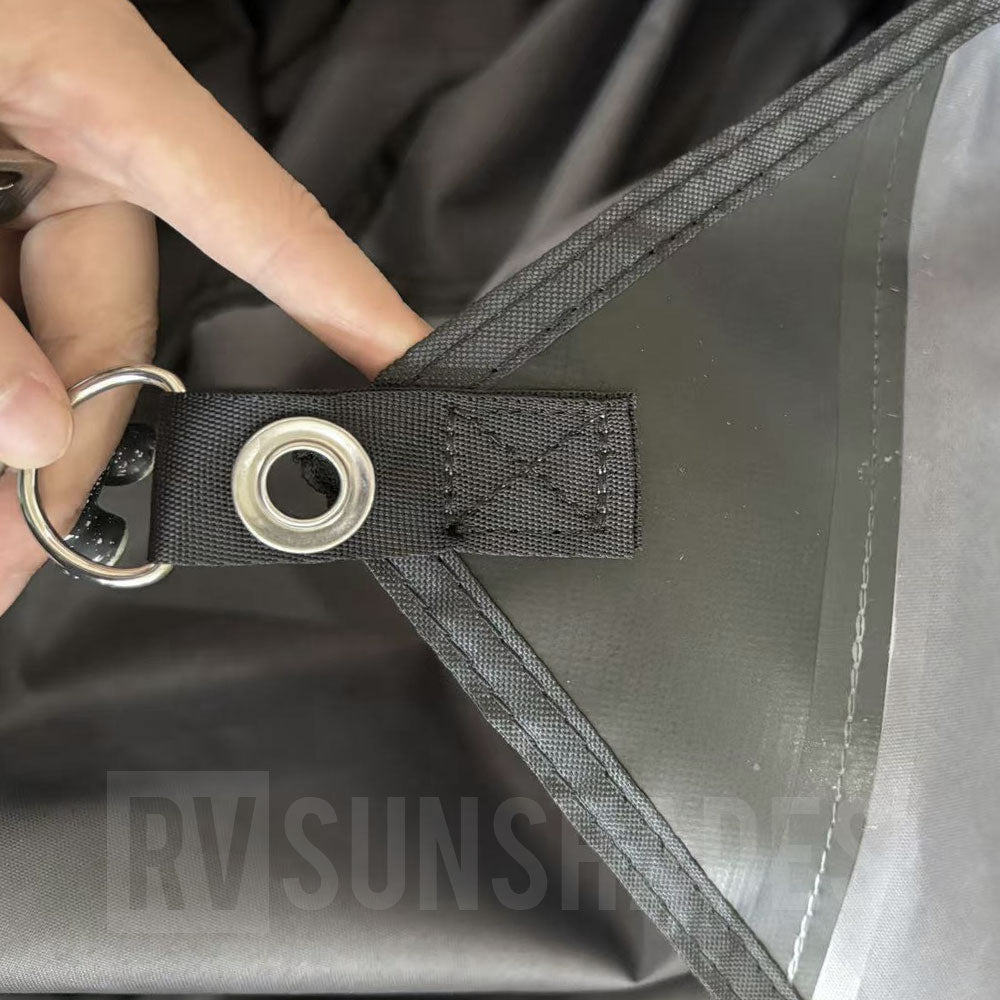

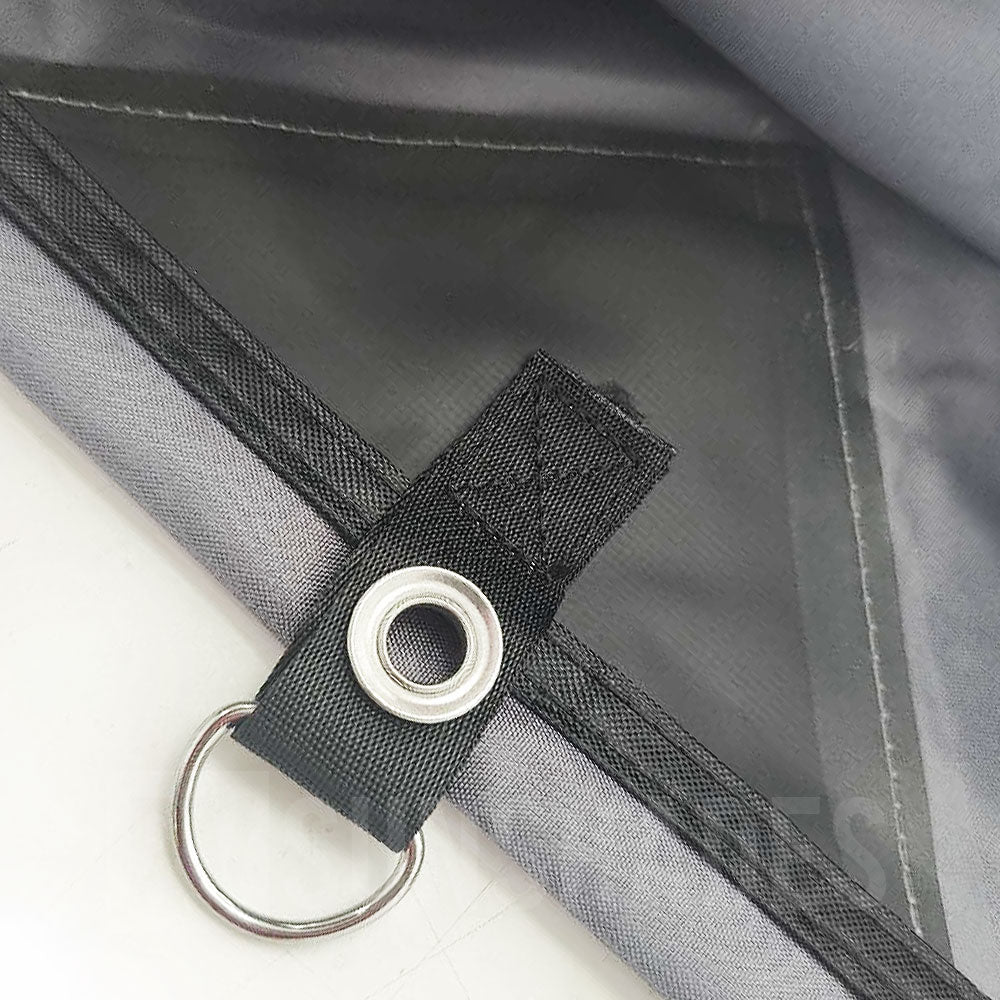

| Eyelet material | Aluminium* | Stainless steel |

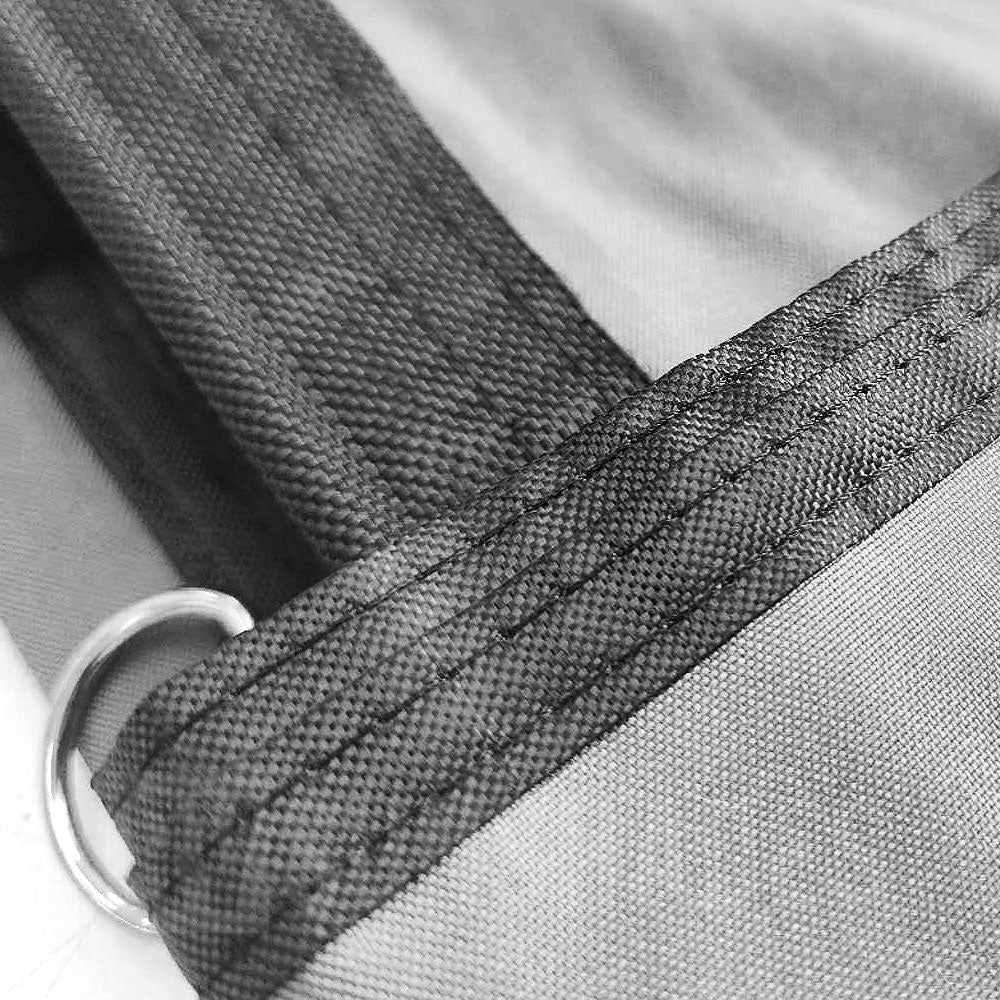

| Reinforcement | Double-layer fabric* | Vinyl patches |
*V1 comparison values describe the Standard V1 side-screen range. The product-specific specification table above governs this end-wall listing.
What is included?
- 1 × 2150 mm waterproof caravan awning end wall
- Elastic ball straps
- Glow-in-the-dark screw pegs
- Storage bag
Installation and correct orientation
- Confirm the three listed dimensions and the intended mounting position.
- Attach the 6 mm keder to a compatible anti-flap bar or sail track, then secure the Velcro straps.
- Position the reversible panel at the required awning end.
- Secure the lower attachment points evenly with the supplied straps and pegs.
- Install with the RVSUNSHADES logo facing outward to help protect the waterproof layer from UV exposure.
Weather and care guidance
This screen is intended as a rain barrier and privacy panel, not a structural wall. Maintain drainage and ventilation, avoid water pooling, and remove the panel during strong or gusty winds. Allow it to dry before storage.
