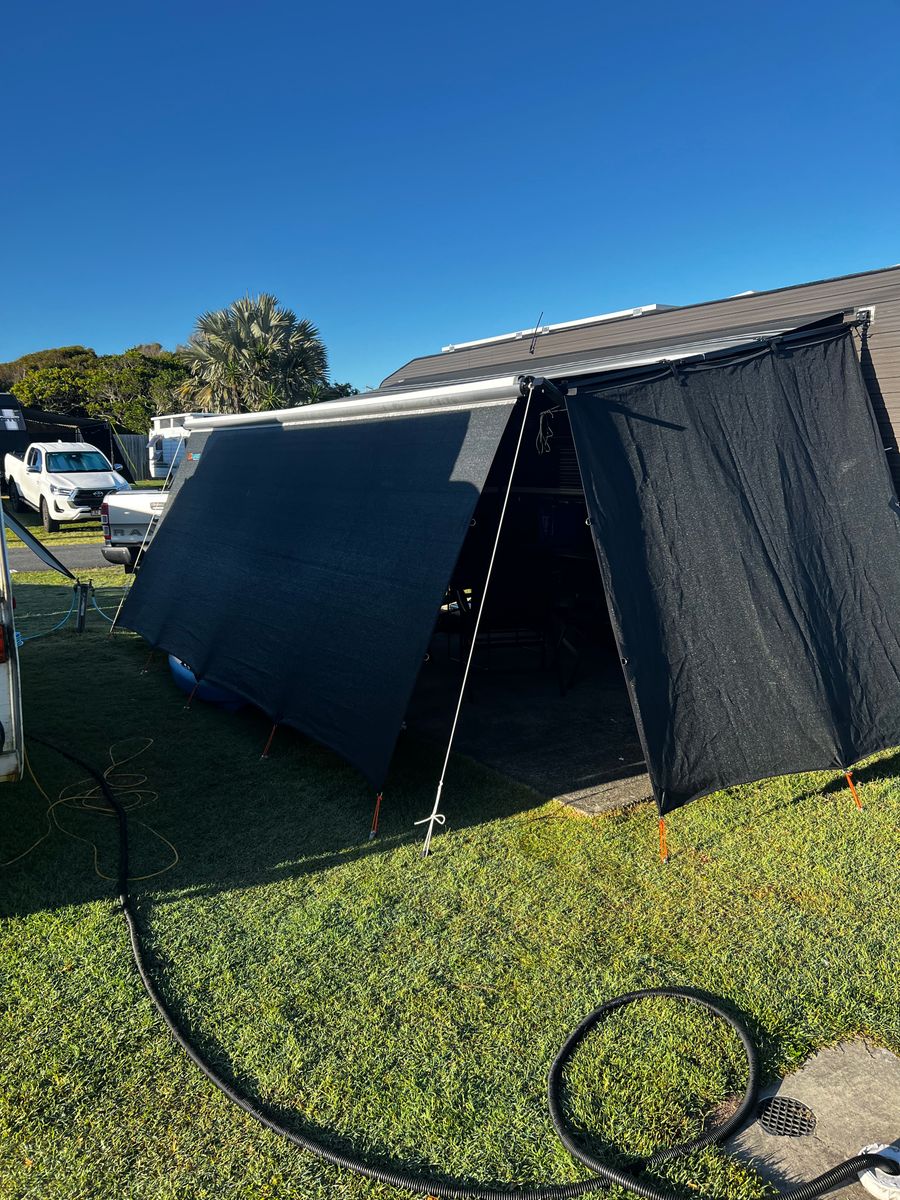

Customer Review Photo
RVSunshades Offroad Caravan End Screen Wall Angle Cut 2650/2200x2350mm Reversible *XL* V3 (2.2m Drop)

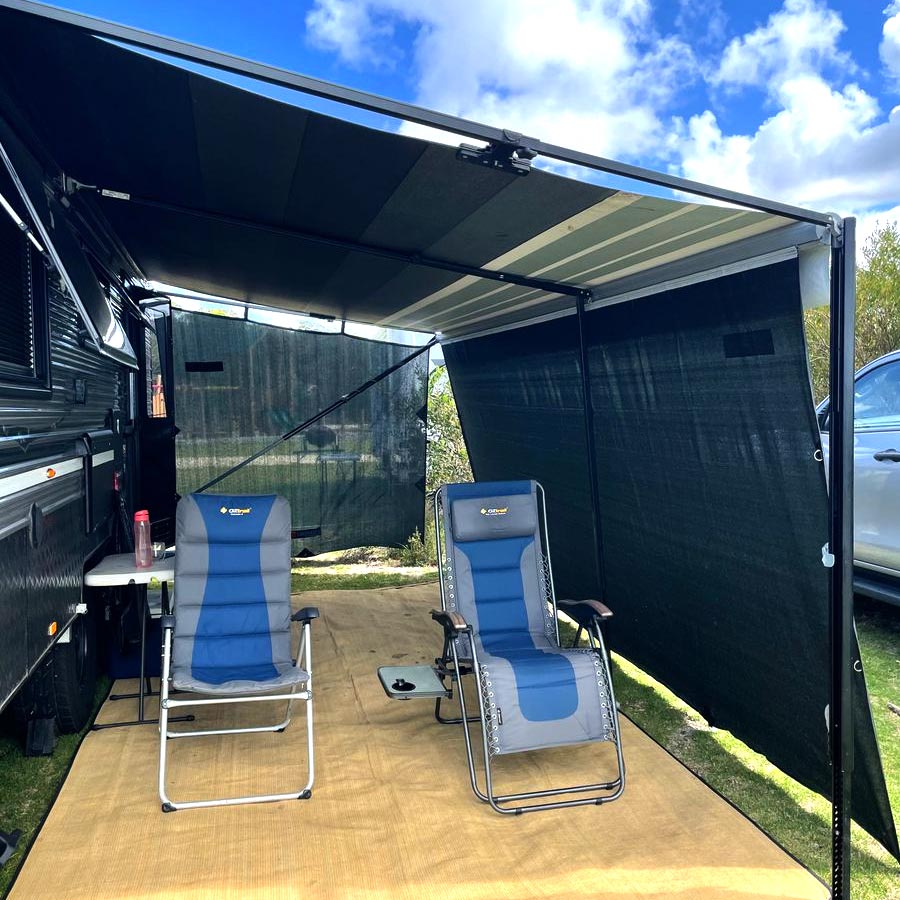

Customer Review Photo

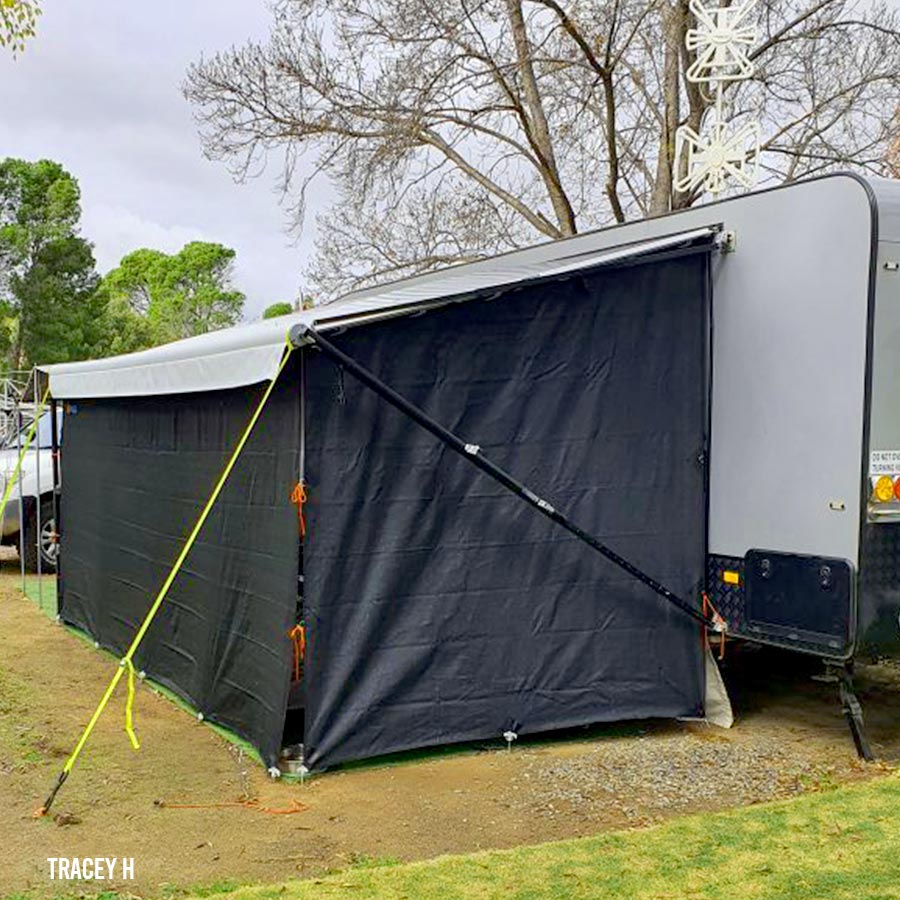

Customer Review Photo

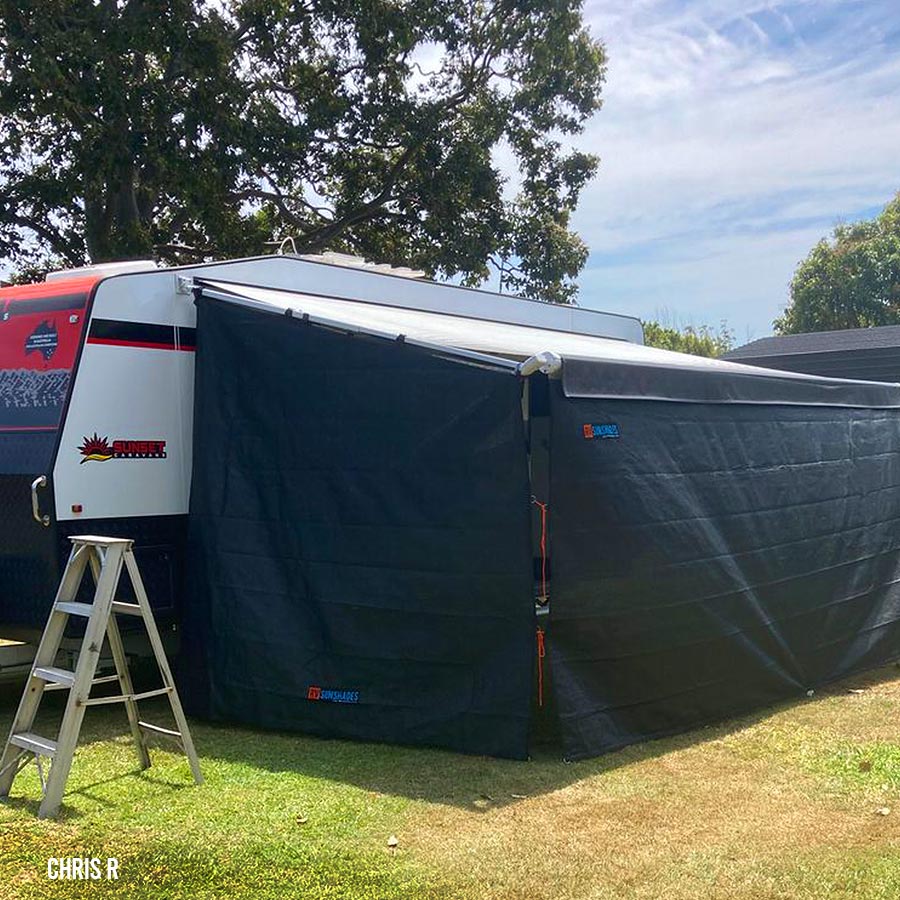

Customer Review Photo
caravan-side-wall-pegs-1
caravan-side-wall-D-ring
caravan-side-wall-material
Glow-in-dark-peg-5
Glow-in-dark-peg-3
Glow-in-dark-peg-4
caravan-side-wall-unpack
caravan-side-wall-packing

RVSunshades Offroad Caravan End Screen Wall Angle Cut 2650/2200x2350mm Reversible *XL* V3 (2.2m Drop)

$165.90

: In stock

Add to wishlist

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Create shade and privacy at either end of a compatible caravan awning.

This reversible V3 angled end wall measures 2650 mm inner height, 2200 mm outer height and 2350 mm wide. Its reversible layout can be used at the front or rear of the awning; the RVdirect logo appears on one side.

Will this angled end wall fit?

Measure the required inner height, outer height and width before ordering. The top attachment is designed for a compatible anti-flap bar using a 6 mm spline and Velcro straps. The V3 high-side inner edge also has an additional 6 mm spline for a compatible caravan-body sail track.

Published compatibility includes Aussie Traveller anti-flap bars, generic anti-flap bars and sail-track diameters of approximately 7–10 mm. For cassette or electric awnings without an anti-flap bar, a separate suitable hanging bar is required.

RVdirect 2.2 m-drop angled caravan end-wall sizing illustration

End-wall sizing guide: Compare the inner height, outer height and wall width with your awning setup. Allow for the anti-flap bar, caravan-side sail track and mounting clearances.

Product specifications

Design Reversible V3 angle-cut end wall — XL width
Inner height 2650 mm
Outer height 2200 mm
Width 2350 mm
Shade rating 95%+

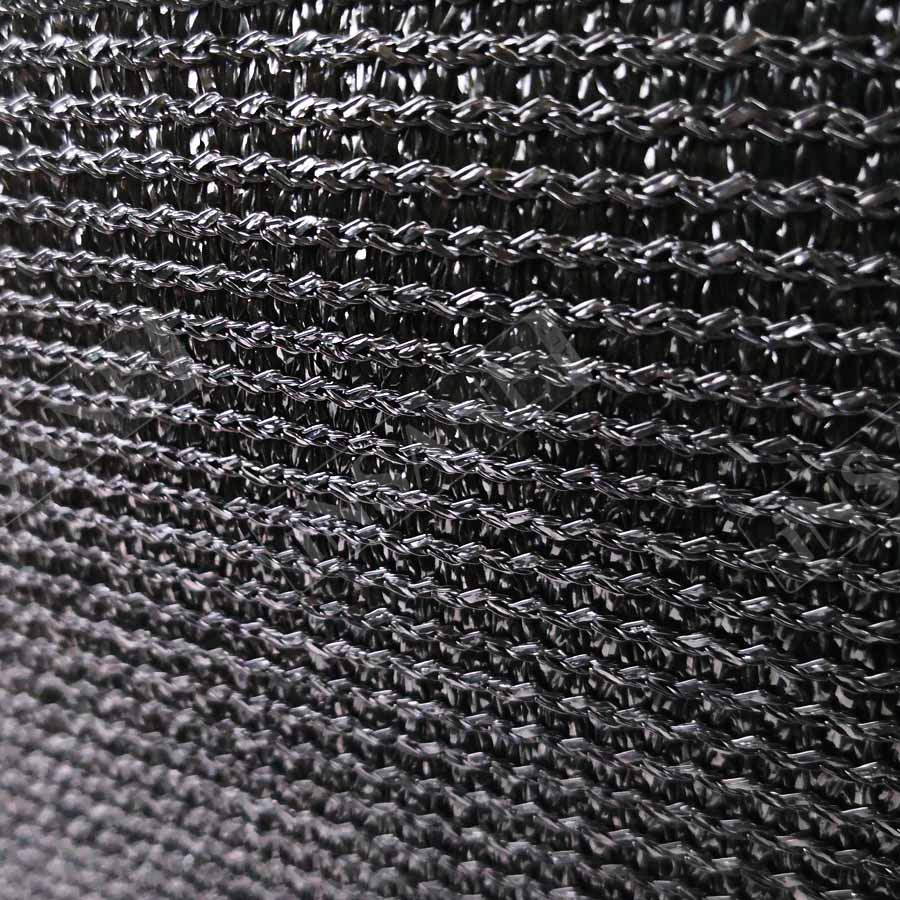

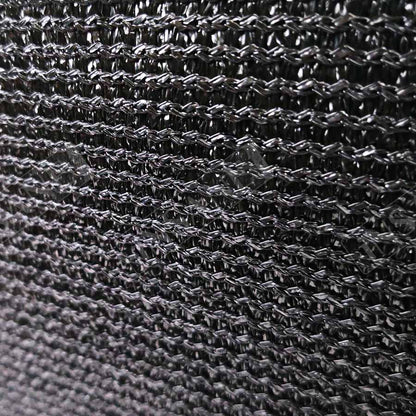

Material 220 gsm, 100% virgin HDPE shade fabric
Colour Black
Top attachment 6 mm spline plus Velcro straps
High-side attachment Additional 6 mm spline on inner edge — V3 feature
Suggested sail-track diameter Approximately 7–10 mm
Published shrinkage factor Longitudinal 0.04–0.06; latitudinal 0.01–0.03

What is included?

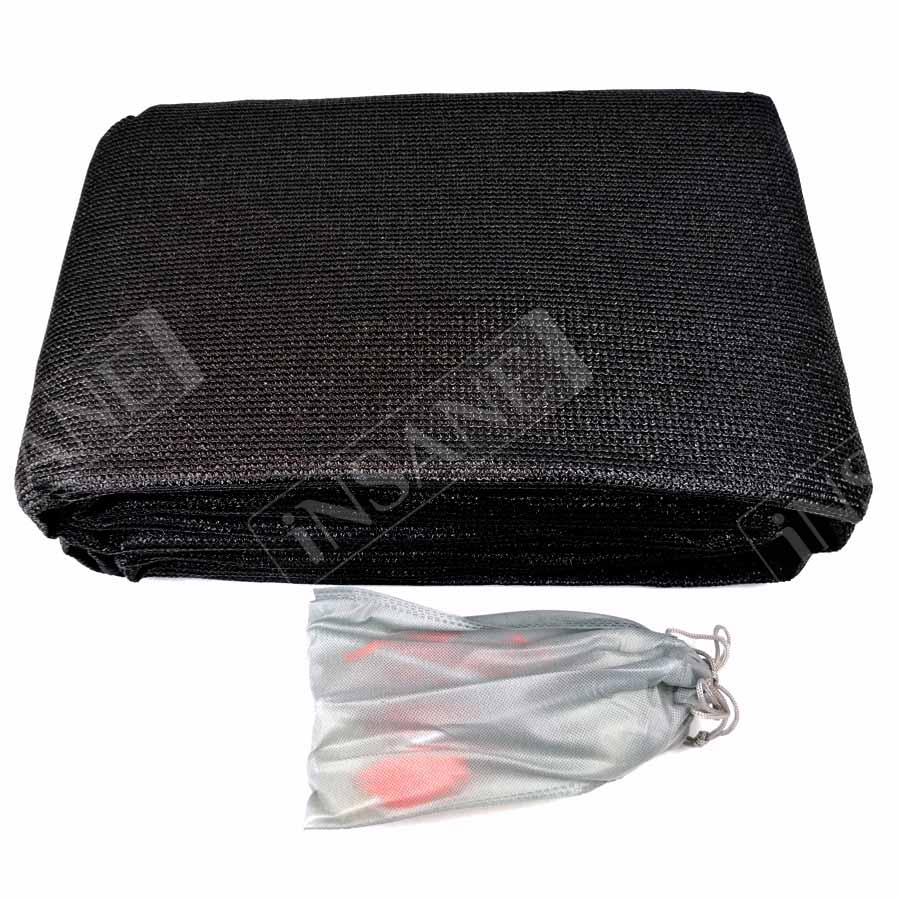

  • 1 × black 2650/2200 × 2350 mm reversible angled caravan awning end wall
  • 6 mm spline and Velcro top attachments
  • 6 mm high-side spline; caravan-body sail track is not included

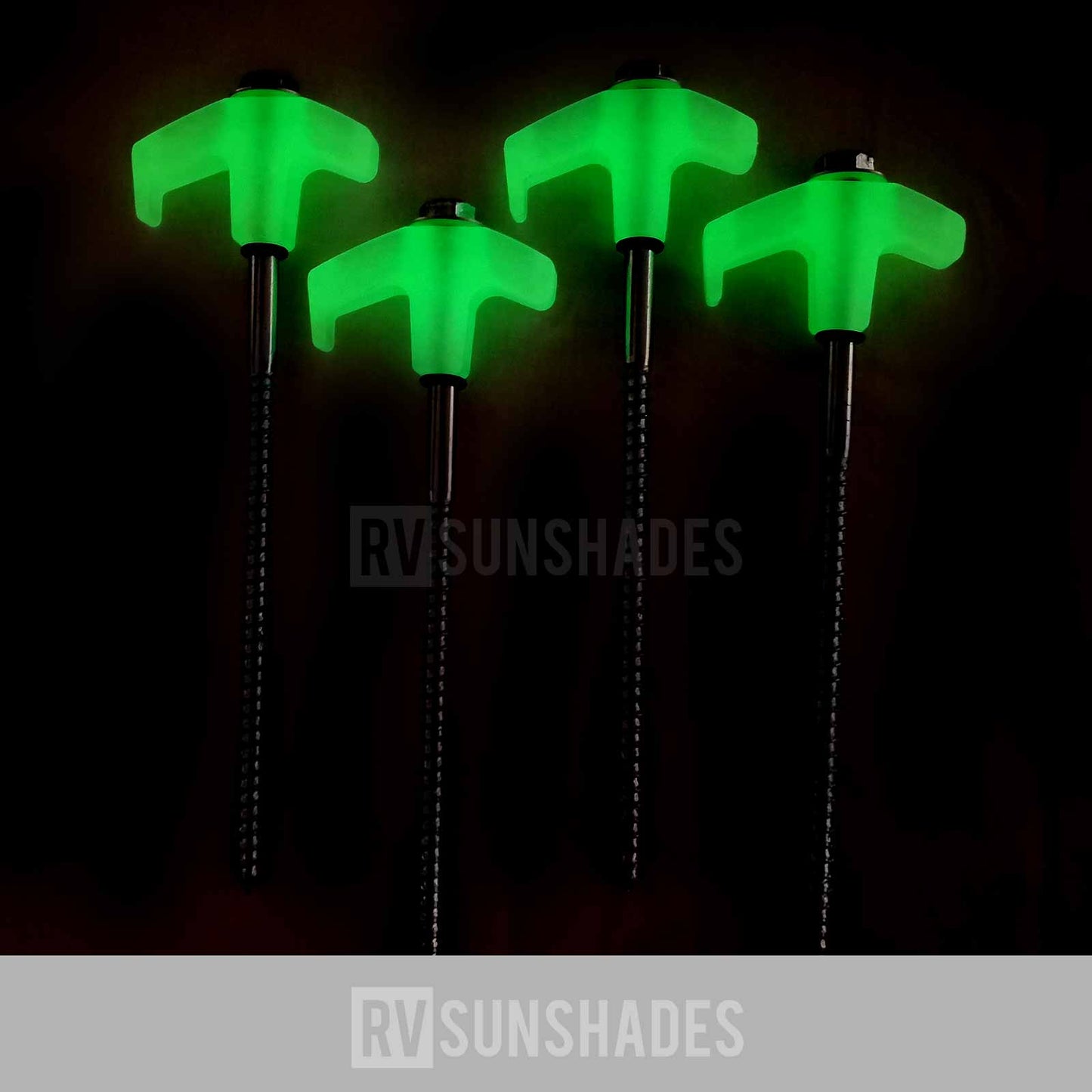

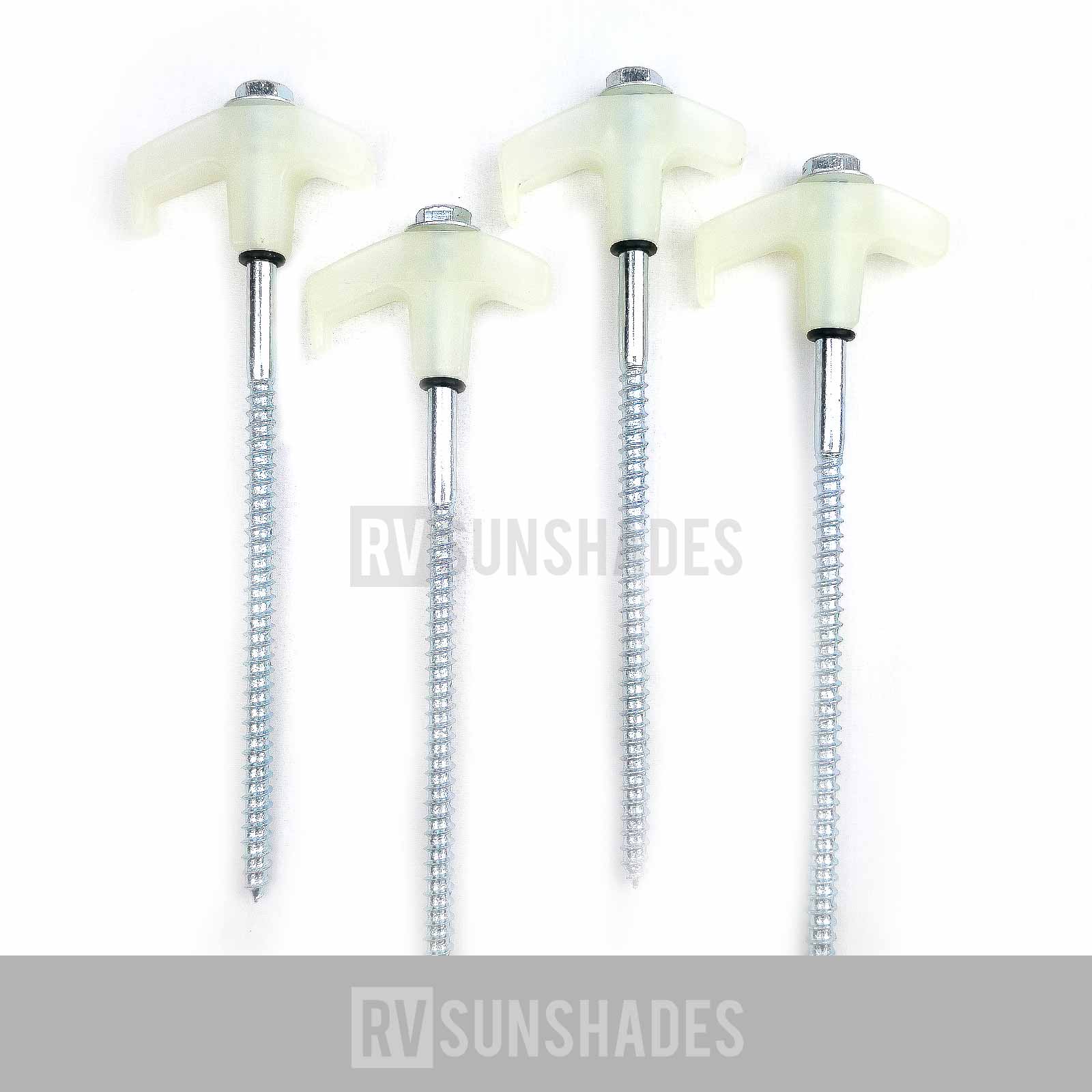

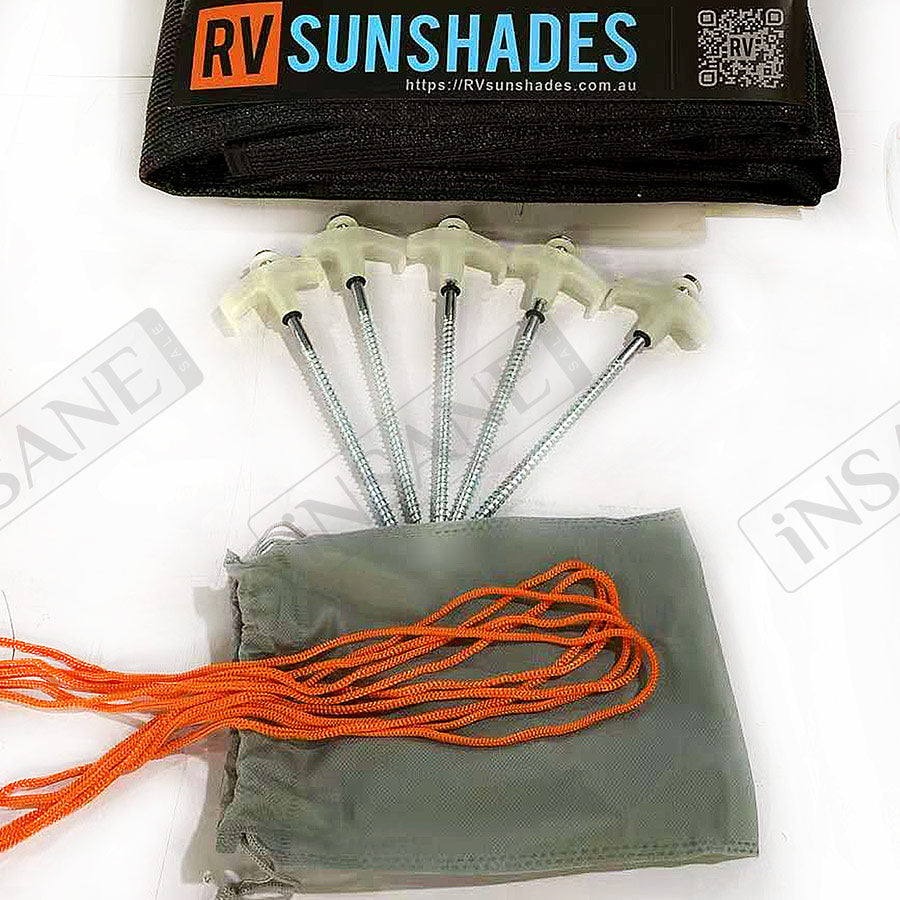

  • Glow-in-the-dark screw tent pegs
  • Ground ropes

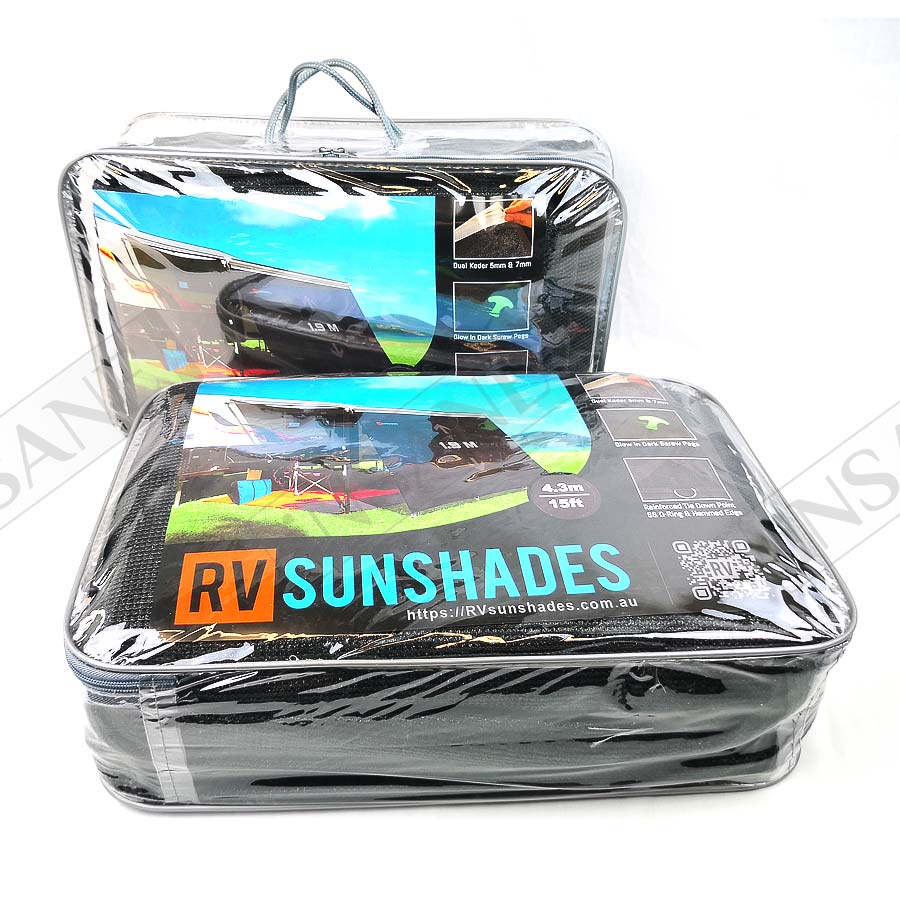

  • Clear zippered PVC carry bag

Installation overview

  1. Confirm all three wall measurements and the available attachment points.
  2. Attach the top edge to a compatible anti-flap bar using the 6 mm spline or Velcro straps as appropriate.
  3. Where a compatible caravan-body sail track is installed, feed the V3 high-side 6 mm spline into that track.
  4. Position the reversible wall at the front or rear of the awning.

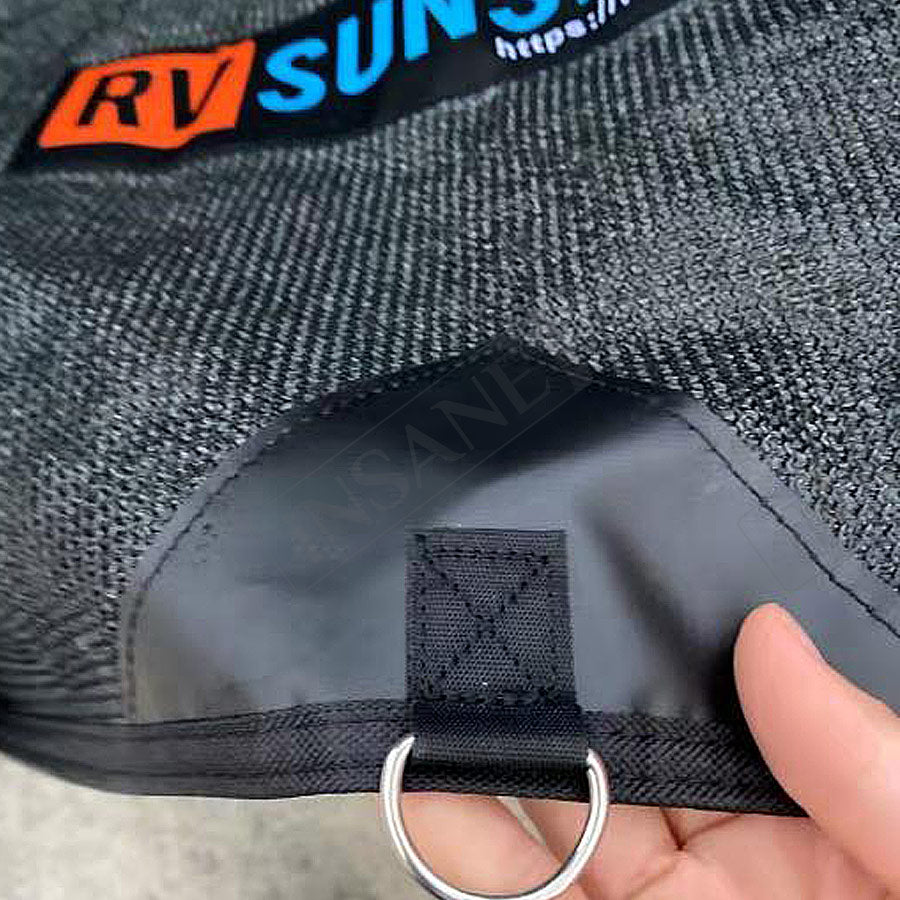

  5. Secure the lower and side D-rings using the supplied ropes and pegs without overstretching.

Wind and care guidance

Remove and store the end wall during strong or gusty winds. Do not leave it flapping or overtensioned, as wind load may damage the fabric, D-ring anchor points or awning.

Product images are for reference. Confirm the listed dimensions, anti-flap-bar arrangement and sail-track size before purchase.
